T-STATION 85

The T-Station 85 is a low cost, entry level, compact pumping station. Popular within universities and R&D worldwide as it offers a simple press-button and hassle-free solution for smaller scale research. This model delivers pumping speeds between 47 to 85 l/s.

The backing pump

Fore vacuum performance is achieved with a choice of:

The principal difference is the newer mXDS3s dry scroll pump delivers higher pumping speeds of 3 m3/h and better ultimate pressure of 0.1 mbar, significantly reducing the pump down time and improving efficiency. It also comes with a fitted inlet valve to protect the pump in the event of power failure, and an exhaust filter making it more compact, ideal for smaller laboratories or where space is restricted.

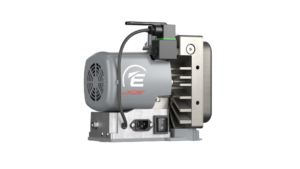

mXDS3s dry scroll pump

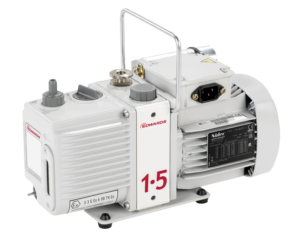

E2M1.5 oil sealed backing pump

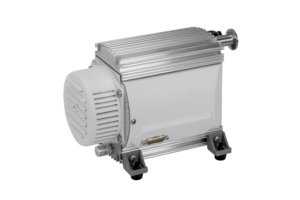

XDD1 dry diaphragm backing pump

The turbomolecular pump

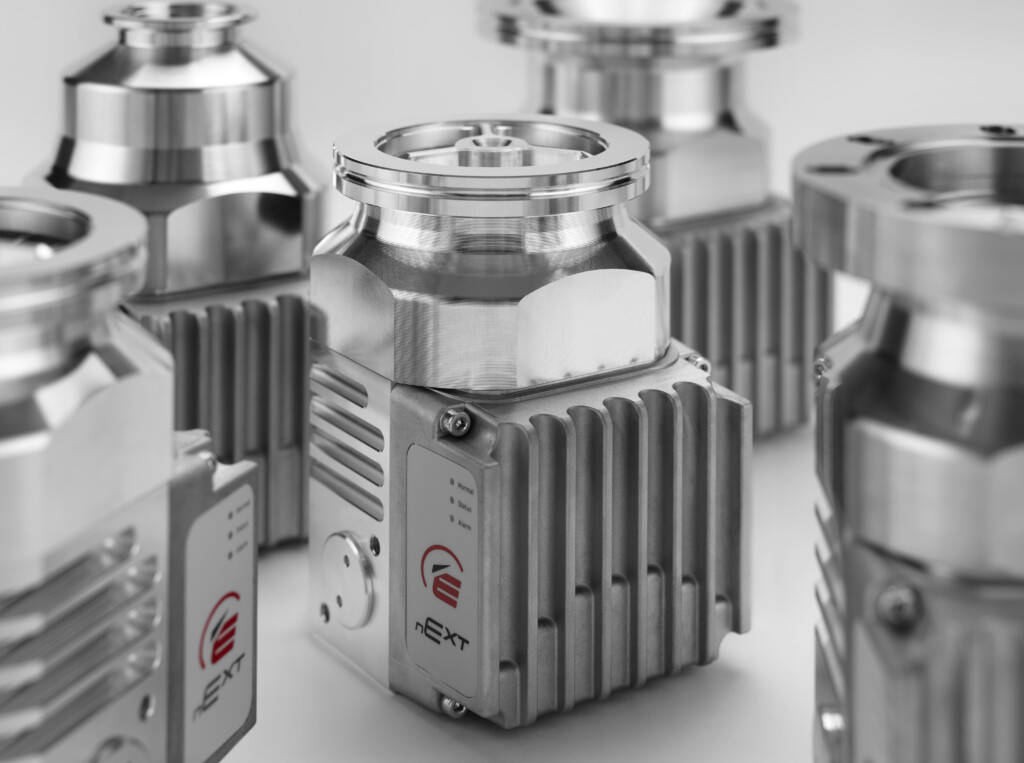

The nEXT85 turbomolecular pump provides the high-vacuum (HV) pressure ranges once primary vacuum has been achieved. This latest breed of TMP technology provides reliable performance with speeds of up to 85 l/s, reliability, and low maintenance intervals.

The controller

Power and manage your vacuum system with the integrated controller.
Features in include:

  • Simple dedicated start/stop button
  • Accurate and easy to read digital display
  • Option to select ‘vent mode’ for fully automated venting

Benefits

  • Powerful compact performance with pumping speeds up to 85 litres per second
  • Rugged all metal frame built for durability and to withstand the varied demands of R&D laboratory testing conditions
  • Stable design enhanced by the use of rubber feet on the baseplate and resulting in lower profile and robust structure
  • Cut offs in the sides for manual handling
  • Integrated air cooler acts to cool internal power supply and pump/controller for quiet operation avoiding multiple fans.
  • Option of inlet flanges choose from an NW40, ISO63 or CF63 inlet flange to suit your application
  • Modular design means replacements can be carried out inhouse extending the life of your product and minimising downtime

Ideal Applications

It’s compact design and mobile versatility make the T-Station 85 a perfect fit for:

  • Academic research laboratories
  • R&D
  • Universities
  • Surface physics
