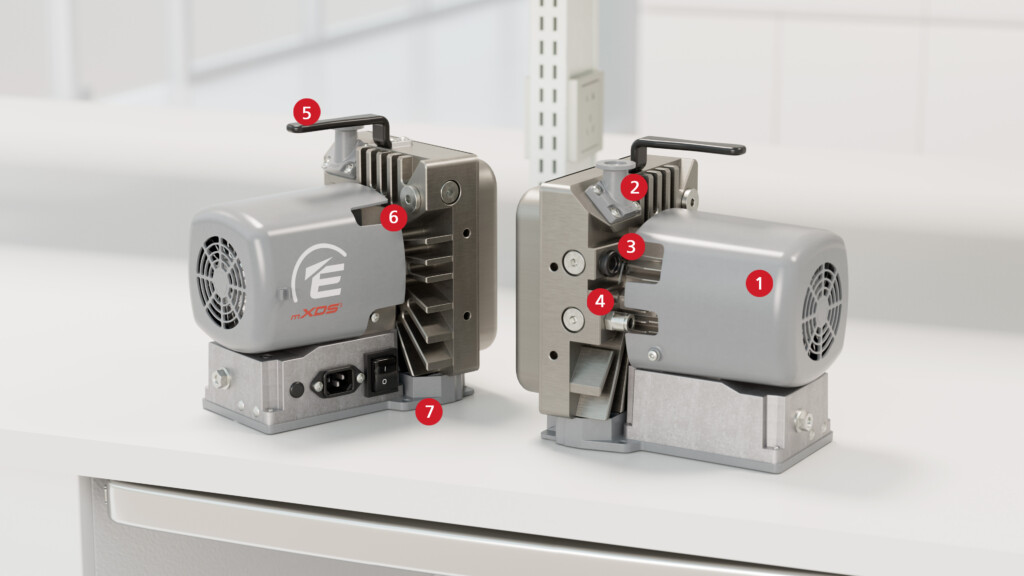

360

  1. 1

    Mains driven motor

  2. 2

    Inlet

  3. 3

    Gas ballast

  4. 4

    Exhaust

  5. 5

    Carry handle

  6. 6

    Solenoid inlet valve with delay opening relay

  7. 7

    Base mounting or face mounting

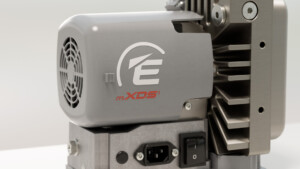

  1. Mains driven motor

    Compact air cooled motor
    Select appropriate motor variant for local electric supply
    Plug in IEC power cable
    On/off switch for local control
    Easy to set up and run

  2. Inlet

    DN 16-KF flange can face up or to the back of the pump for compact installation.
    An alternative inlet with 1/4 inch BSP connection available as an accessory which can be used with suitable push fit fittings

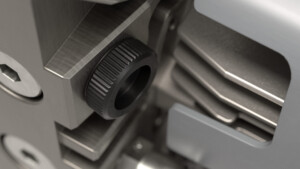

  3. Gas ballast

    Assists with water vapour pumping and clean up
    1/8 inch BSP adaptors and restrictors offered as accessories

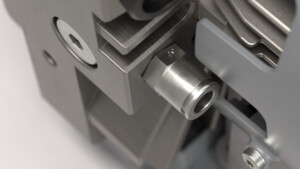

  4. Exhaust

    1/8 inch BSP push in fitting supplied as standard suitable for 8mm od hose. Silencer supplied with configured pump

  5. Carry handle

    Pick up and place pump

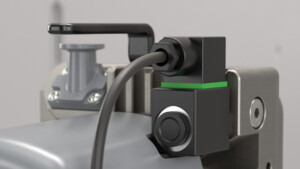

  6. Solenoid inlet valve with delay opening relay

    Supplied as standard mXDS3s only. Fast closing in the event of power failure, this inlet valve provides extra system protection especially if using gas ballast.
    Delay opening on startup ensures the pump is evacuated when the inlet valve opens

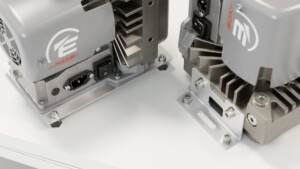

  7. Base mounting or face mounting

    Base plate and bracket accessories available.
    Flexibility in orientation, optimising space utilisation and the option to fit vibration isolators
