Features

The proven design of the ELD500 leak detector, combined with low energy consumption, extended warranty and even longer life ion source, ensures exceptional low cost of ownership with no compromise on performance.

• High efficiency and low operating power consumption
• Highly reliable product with long maintenance intervals and low part replacement requirements
• Long life Ion source with a 30 month warranty

… in under two minutes from power on. Users can benefit from simple pass/fail readings through to detailed analysis via the easy-to-read control interface, and due to the low weight and integrated carry handles, it is mobile enough to be bench top or trolley mounted.

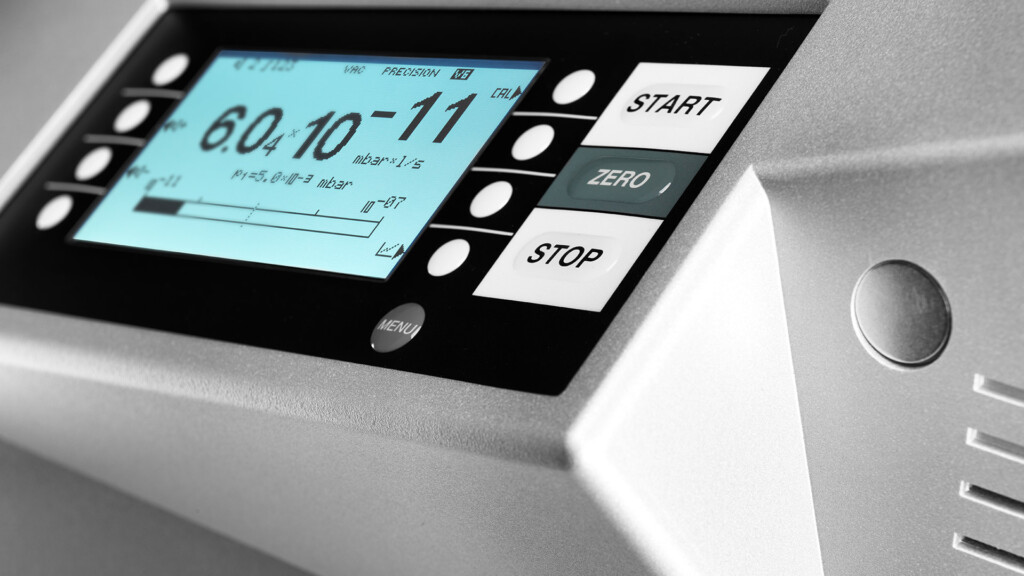

• Large clear graphical display with direct access to key functions for incredible ease of use

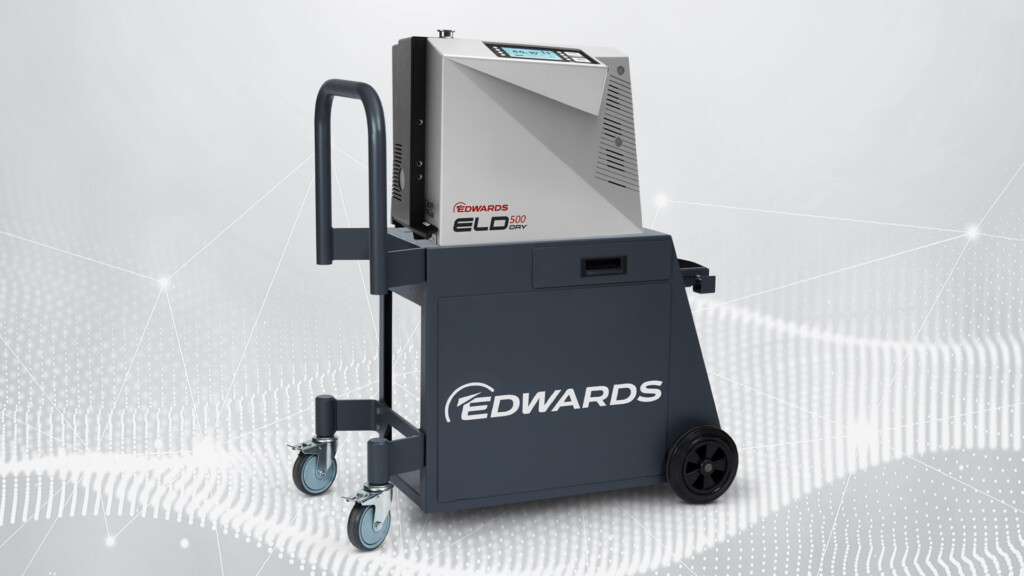

• Truly portable with weight from only 30 kg and accessories including a trolley with space for an additional pump and a helium gas bottle

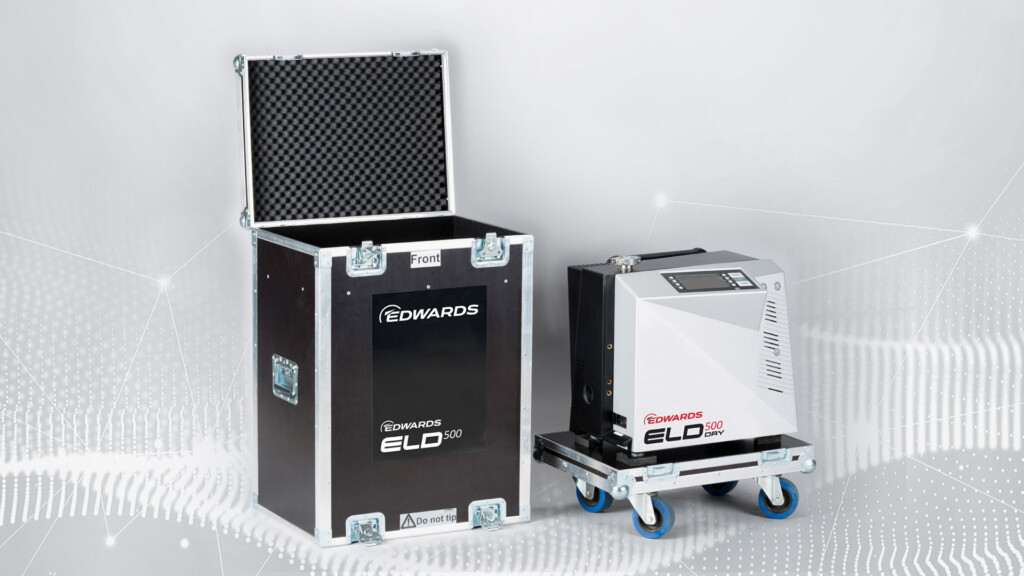

• The leak detector can be transported in any orientation and can be ordered with an optional transport case on wheels for true portability
• Rapid start up, from power on to first measurements in only 107 seconds

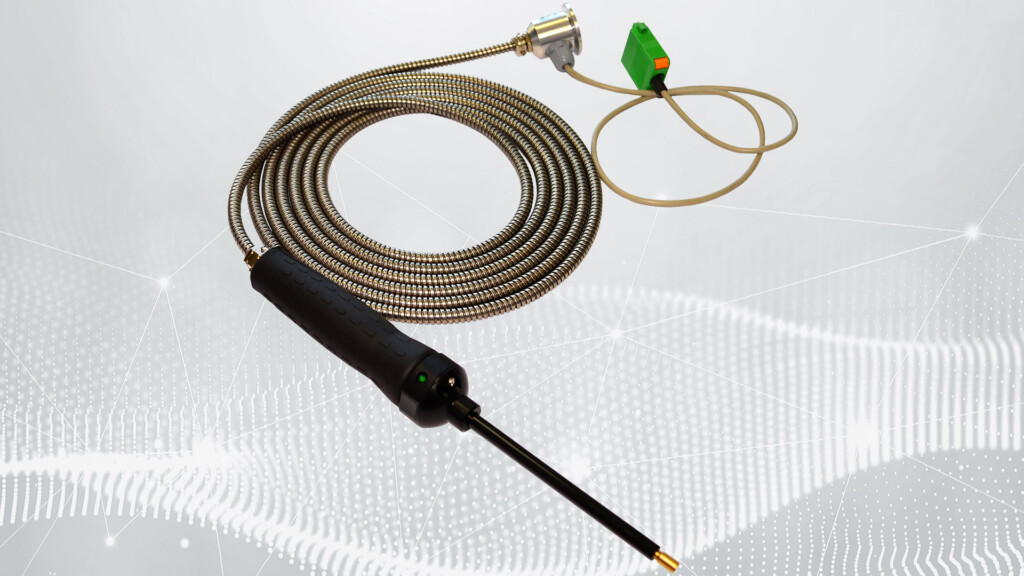

With three variants in the range: ELD500, ELD500 DRY and ELD500 FLEX, plus an extensive catalogue of accessories, the versatile ELD500 leak detector is ideal across all applications. At the push of a button the ELD500 can easily be set to work in either vacuum mode for precise measurement of leak rate or sniffer mode for identifying leak location.

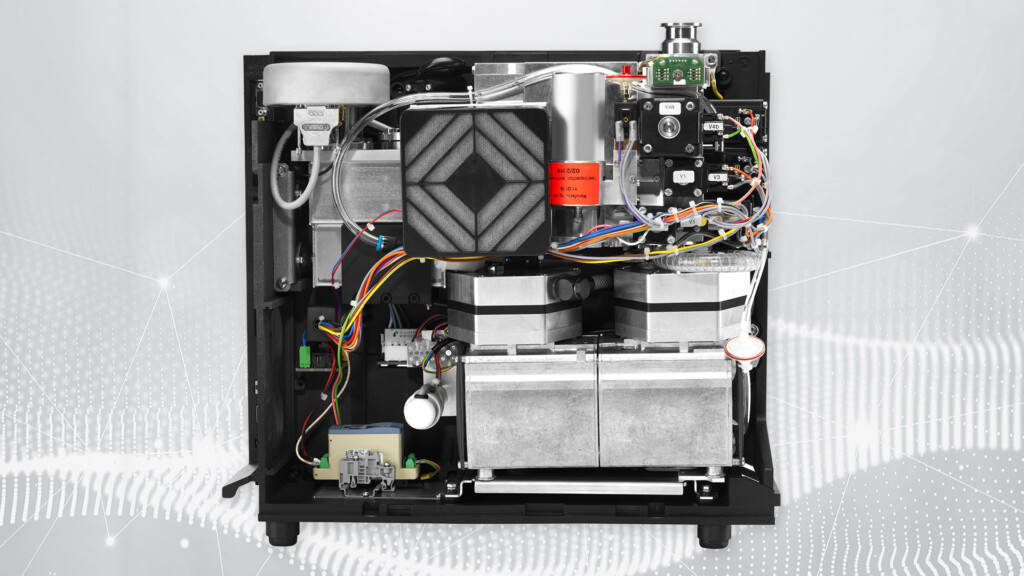

All models feature a rugged turbomolecular pump optimised for the rigours of portable leak detection. Variants include:

• ELD500 version with an integrated oil sealed rotary vane pump
• ELD500 DRY version with an integrated helium optimised diaphragm pump
• ELD500 FLEX version without a primary pump, ideal for trolley mounting along with a larger primary pump such as an Edwards nXDS scroll pump

Excellent repeatable accuracy is achieved by the ELD500 through calibration with the integrated test leak source and high quality mass spectrometer. Whether being used on a production line, where consistent measurement repeatability is critical, or in a laboratory environment, typically requiring the measurement of extremely low leak rates, the ELD500 is your perfect partner.

• Automated, simple, high accuracy calibration possible via the integrated long life calibrated test leak
• Optional external calibrated test leaks available for applications requiring precision accuracy traceable to international and customer/company standards
• Excellent long term stability ensured by class leading 180 degree mass spectrometer
• Fastest recovery following helium contamination thanks to highest helium pumping speed in fine mode
• High sensitivity leak detection with measurement of leak rates for Helium of less than 5×10⁻¹²mbar ls⁻¹ in vacuum mode and less than 1×10⁻⁷mbar ls⁻¹ in sniffer mode
