Technical data and pumping performance
nXLi single inlet Enhanced
Technical data
| nXL110i Enhanced | nXL200i Enhanced | |
| Peak pumping speed* | 110 m3/h | 200 m3/h |
| Ultimate vacuum (total pressure) | <0.02 mbar | |
| Inlet flange | NW40 or NW50 | |
| Outlet flange | NW25 | |
| Maximum permitted outlet pressure | 0.4 bar(g) | |
| Maximum continuous inlet pressure | 45 mbar | 18 mbar |
| Operating temperature range | +5 °C to +40 °C | |
| Nominal rotational speed | 9000 rpm | |
| Voltage input | 200-240 V (+/-10%) | |
| Mains frequency | 50/60 Hz | |
| Power connector 1-ph | C20 acc. to IEC 60320 | |
| Power at ultimate | <700W | |
| Leak tightness | < 1 x 10-5 mbar*l/s | |
| Weight | 72 kg | 78 kg |
| Noise at ultimate vacuum | 57 dB(A) | |
* Values for the maximum pumping speed are taken at sea level. At levels higher than sea level, the pump’s performance can be affected, and the rotational speed can drop below the nominal value.
For more information, take a look at the nXLi Enhanced single inlet datasheet.
Pumping performance
nXLi dual inlet Enhanced
Technical data
| nXL110i Enhanced | nXL200i Enhanced | |
| Peak pumping speed primary inlet*, ** | 98 m3/h | 158 m3/h |
| Peak pumping speed secondary inlet*, ** | 78 m3/h | 75 m3/h |
| Ultimate vacuum (total pressure) | <0.07 mbar | |
| Inlet flange primary inlet | NW40 or NW50 | |
| Inlet flange secondary inlet | NW25 | |
| Outlet flange | NW25 | |
| Maximum permitted outlet pressure | 0.4 bar(g) | |
| Maximum continuous primary inlet pressure | 37 mbar | 24 mbar |
| Maximum continuous secondary inlet pressure | 51 mbar | 34 mbar |
| Operating temperature range | +5 °C to +40 °C | |
| Nominal rotational speed | 9000 rpm | |
| Voltage input | 200-240 V (+/-10%) | |
| Mains frequency | 50/60 Hz | |
| Power connector 1-ph | C20 acc. to IEC 60320 | |
| Power at ultimate | <700W | |
| Leak tightness | < 1 x 10-5 mbar*l/s | |
| Weight | 72 kg | 78 kg |
| Noise at ultimate vacuum | 57 dB(A) | |
* Values for the maximum pumping speed are taken at sea level. At levels higher than sea level, the pump’s performance can be affected, and the rotational speed can drop below the nominal value.
** The maximum pumping speeds are measured with only one open inlet. With simultaneous gas flow at both inlets, the pumping speed will be different. Contact us for more details.
For more information, take a look at the nXLi Enhanced single inlet datasheet.

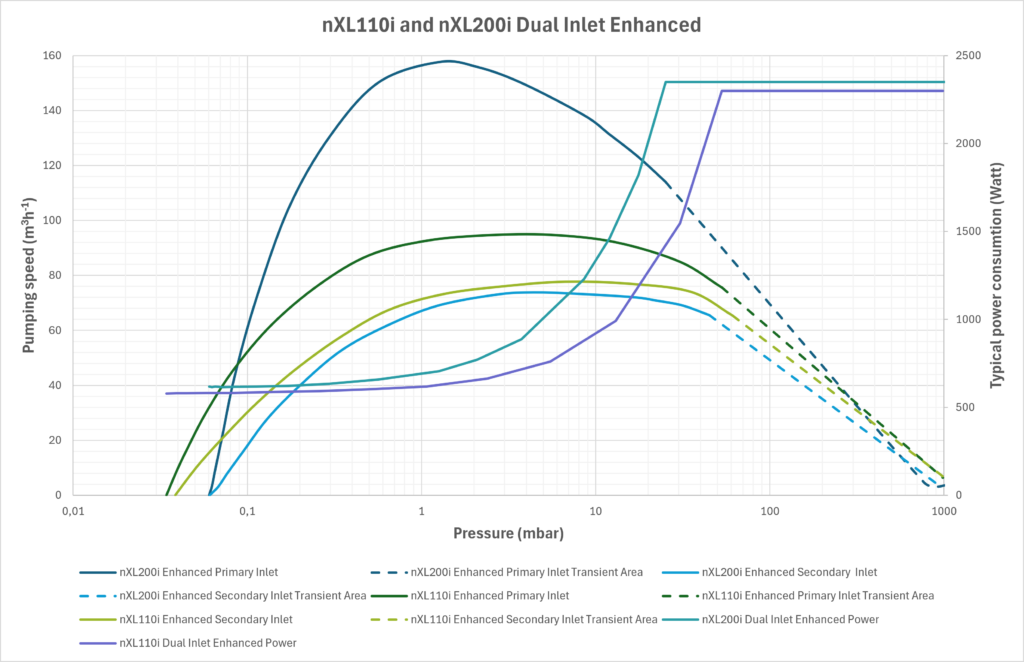

Pumping performance
