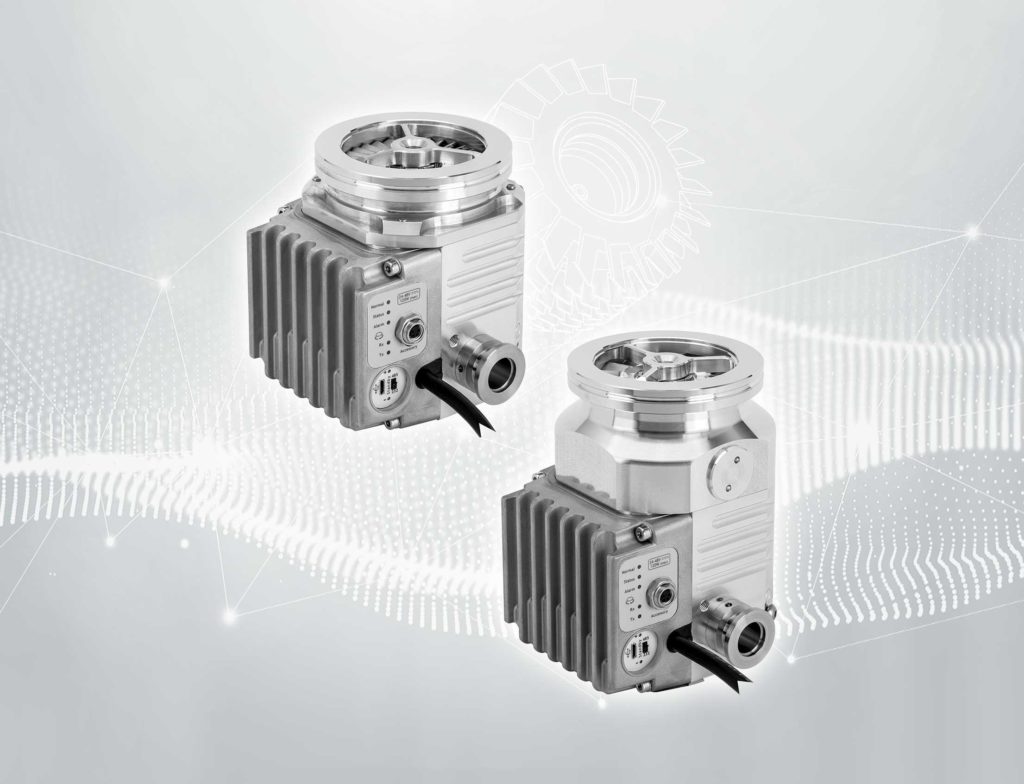

nEXT55 AND nEXT85
The most compact pumps of the nEXT range with a significantly reduced height and improved performance in a smaller package.
These pumps offer pumping speeds of 55 l/s and 85 l/s for nitrogen, they provide a high pumping density, greater than other pumps in its class, with almost double the pumping speed of similar sized turbo pumps.
The rotor has been designed to optimise pump performance and achieve both higher speeds and higher compression while maintaining high levels of reliability and low risk to adopters. The same performance characteristics have been maintained in our any orientation variants that provides flexibility to the end user.
As with all the pumps in the nEXT range field maintenance is only required every 4 years of operation, and this including replacement of the bearing can be performed by the end user.
nEXT55 and nEXT85 bring with them the benefits of comprehensive communication and control options available, as well as a full set of accessories, the ideal choice in deployable instruments or portable applications where a compact footprint or lower weight are key factors.

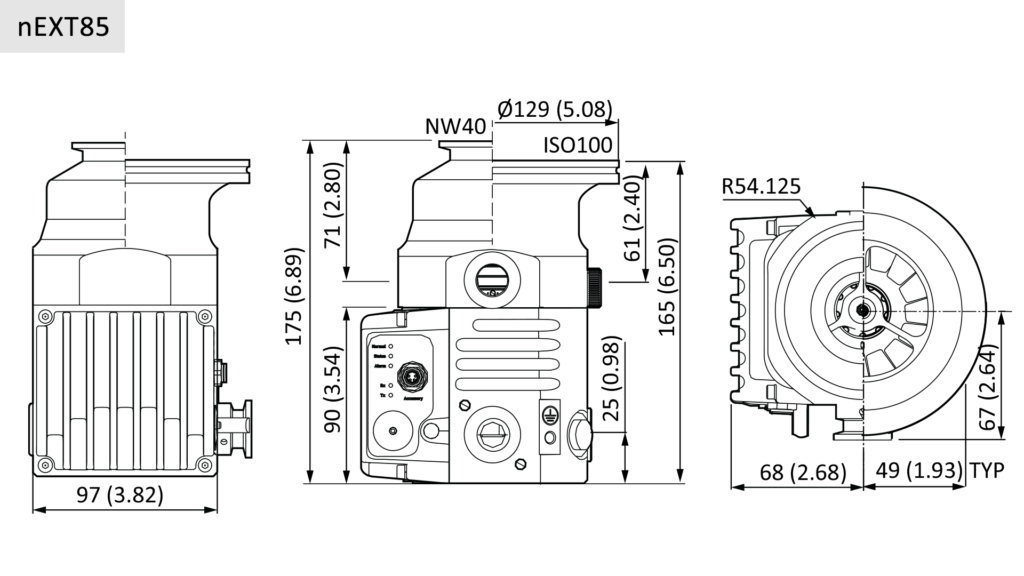

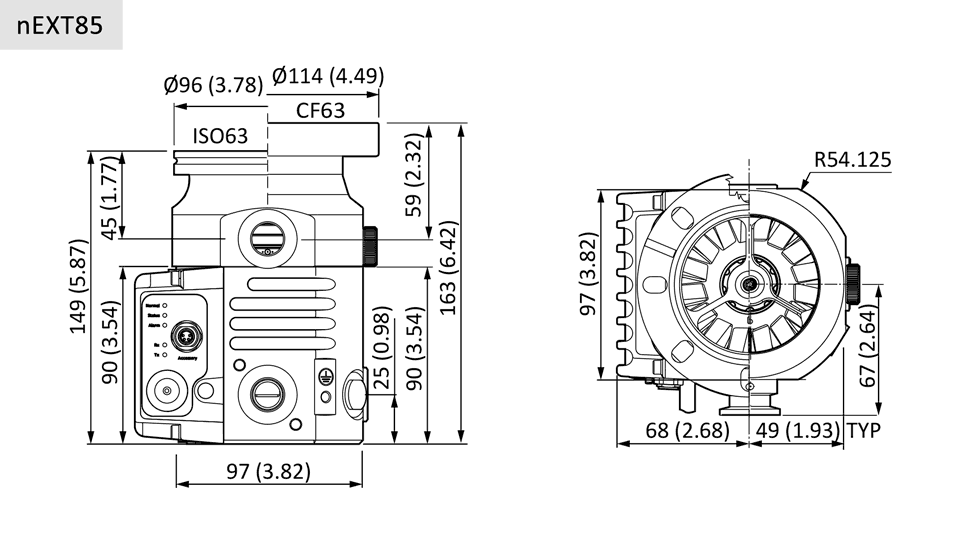

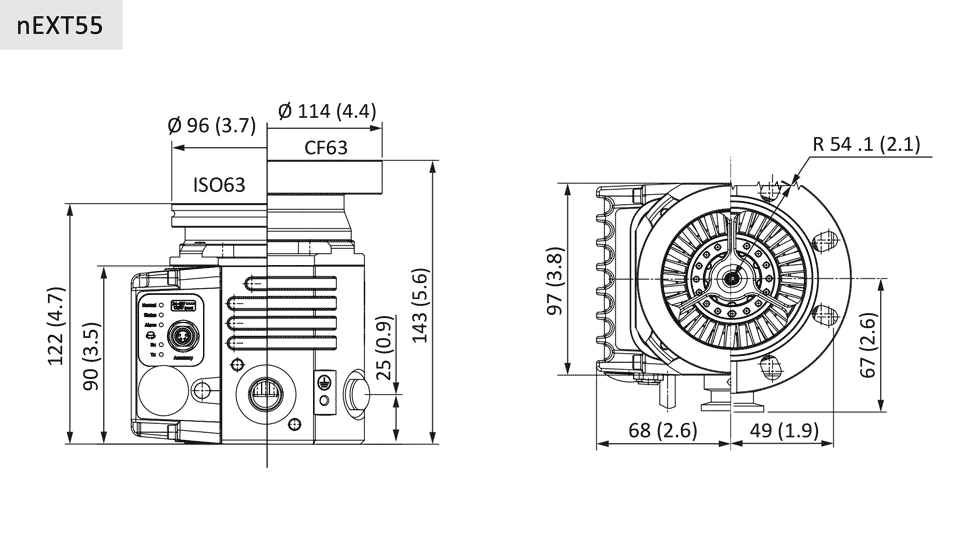

Dimensions

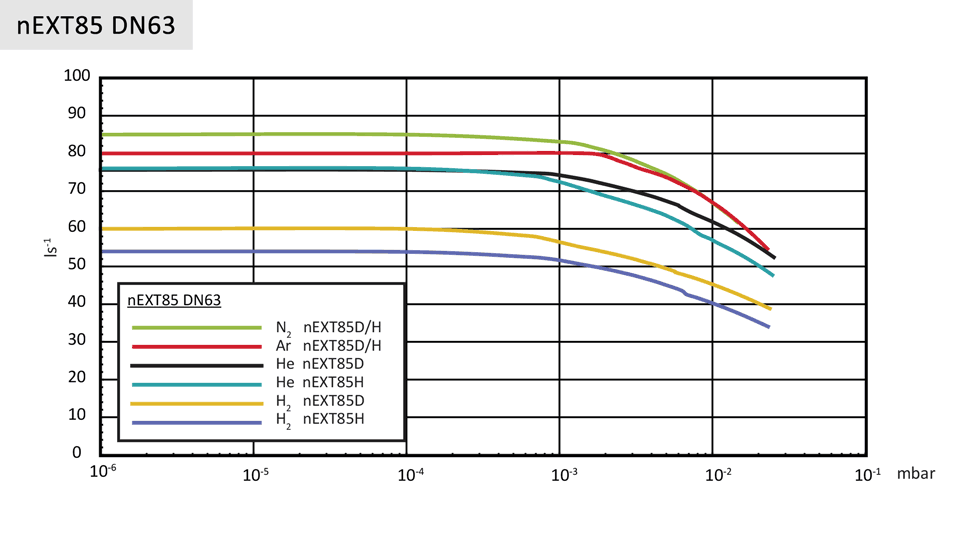

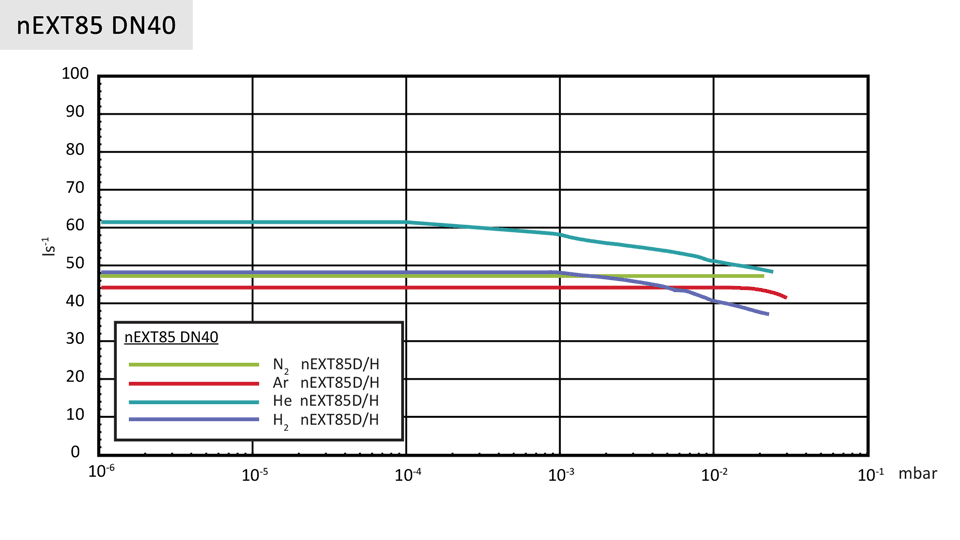

Performance
