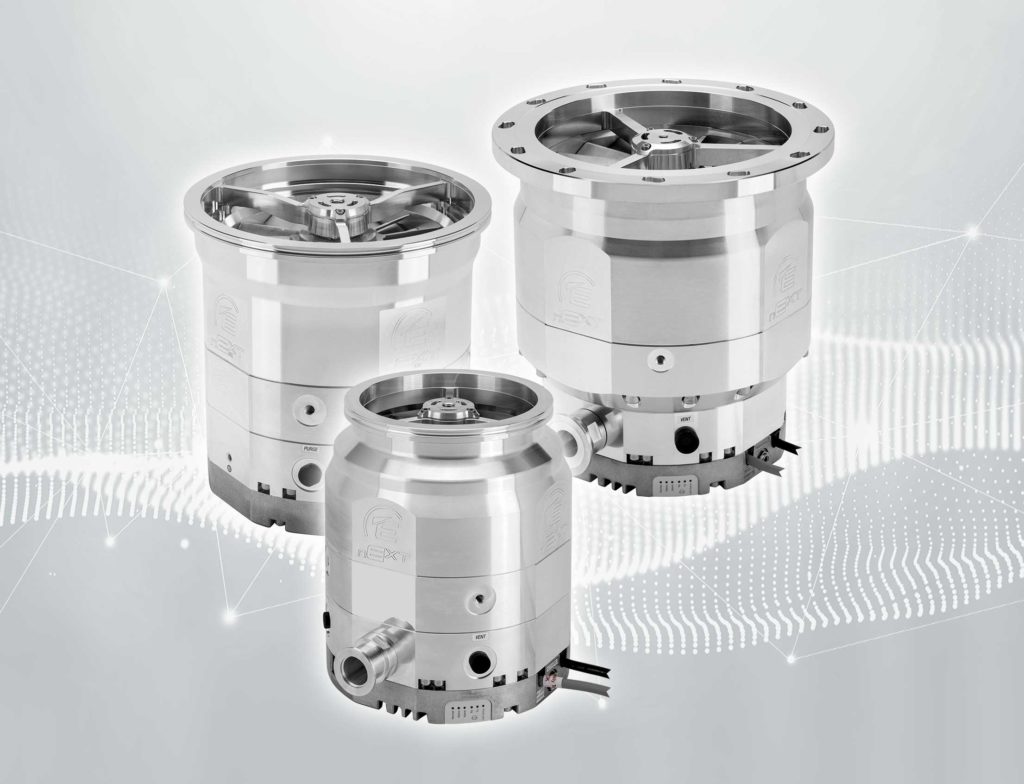

nEXT730, nEXT930 and nEXT1230

Larger pumps offering nitrogen pumping speeds of 730, 925 and 1250 l/s respectively.

Designed to meet a wide range of requirements:
As well as addressing the general R&D market, where high compression, faster pumping speeds are required, these pumps are also designed to meet the requirements of the coating market and other diffuse market sectors such as:

  • Heat treatment
  • Furnace applications
  • E-beam welding
  • Etch
  • Ion implant
  • Degassing
  • Cylinder evacuation

We match the specific applications of OEM:
For our OEM customers derivative versions of these products can be developed, just like the existing nEXT pumps, and like the existing nEXT pumps split flow variants are possible. This will give benefits to our customers with larger instruments as well as the possibility to reduce the total number of pumps on existing instruments.

Operate in any orientation:
These compact pumps are able to operate in any orientation*, and are supported by a full range of accessories for cooling, venting, powering and control.

* for nEXT1230, inverted option available

The pumps feature bearings with a typical lifetime of at least 4 years with no maintenance:
When required, a bearing replacement can be undertaken by the customer themselves or they can take advantage of our other service support options.

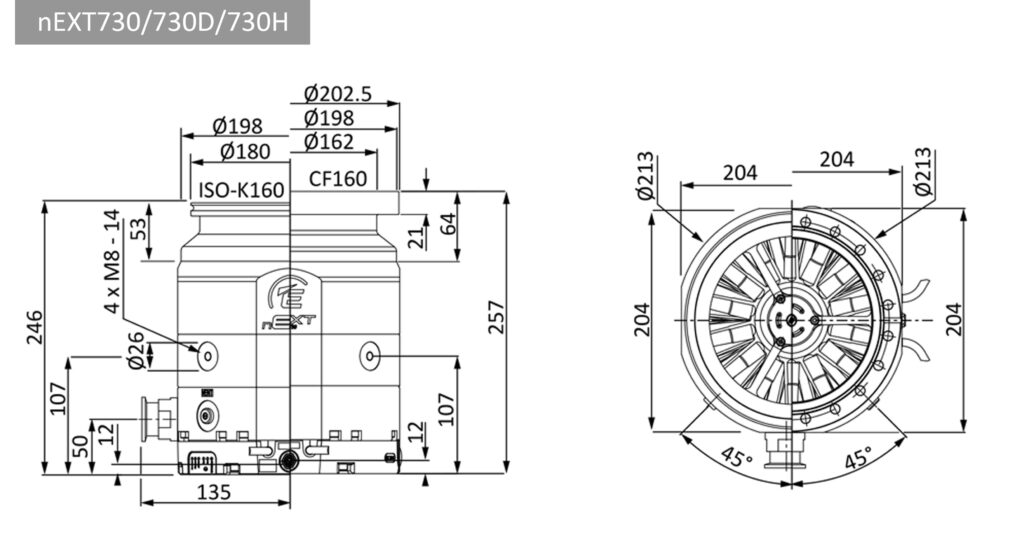

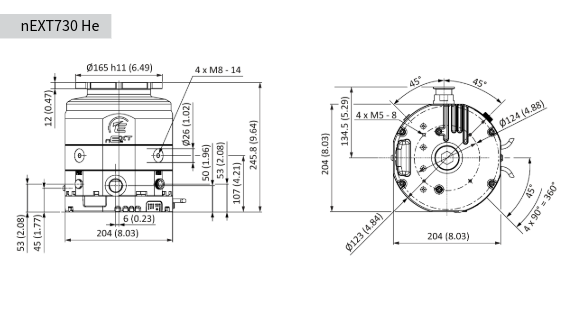

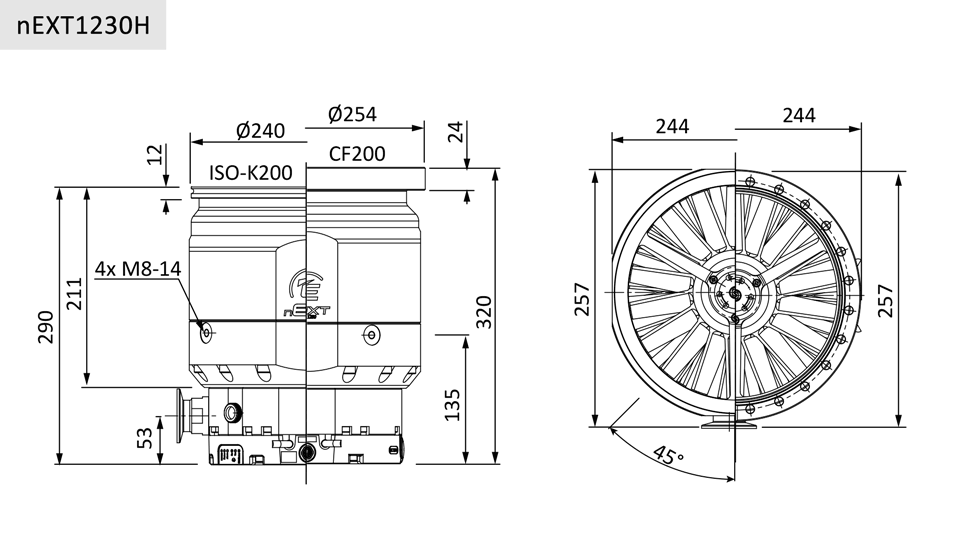

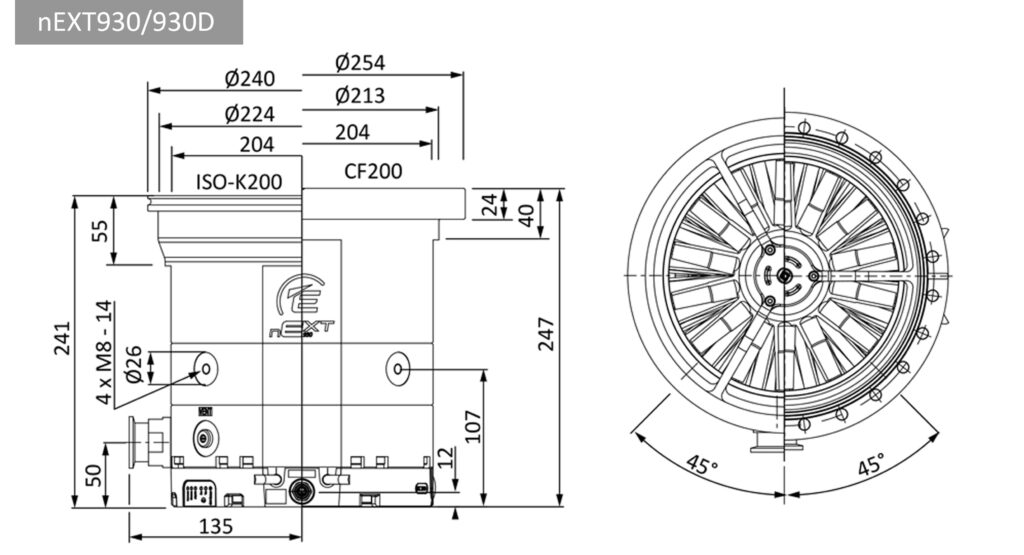

DIMENSIONS

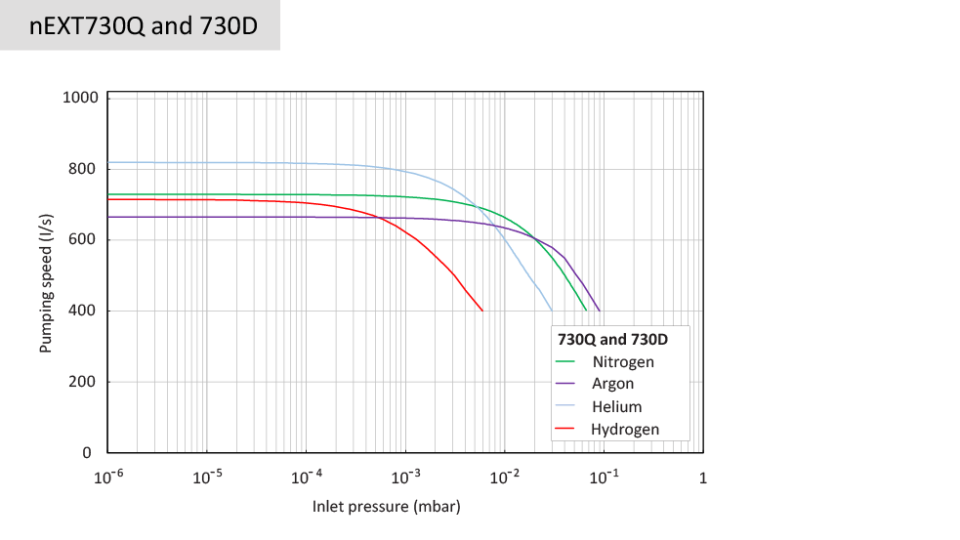

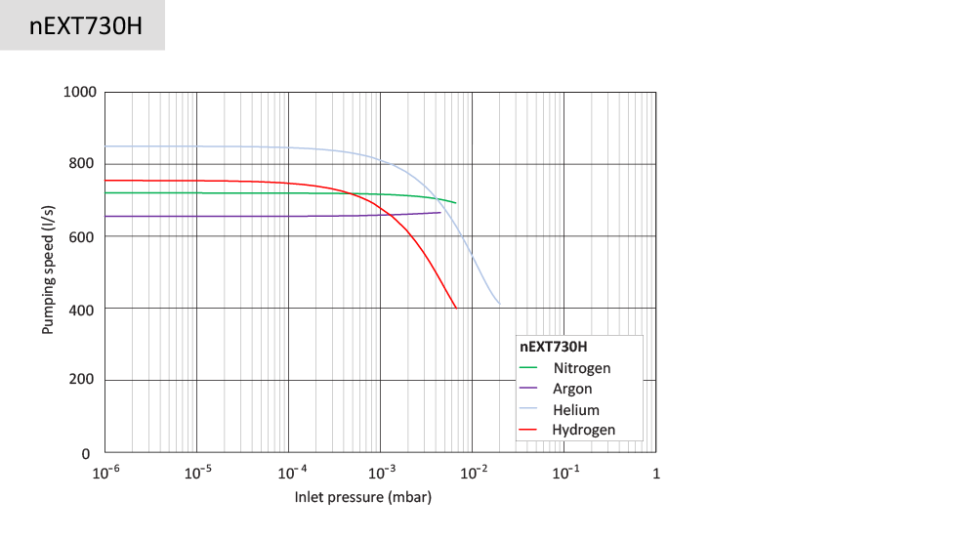

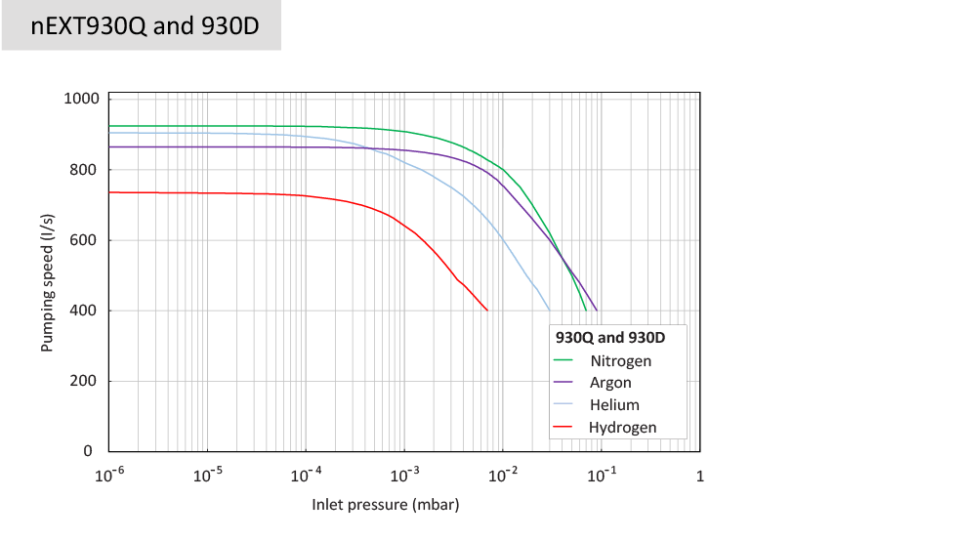

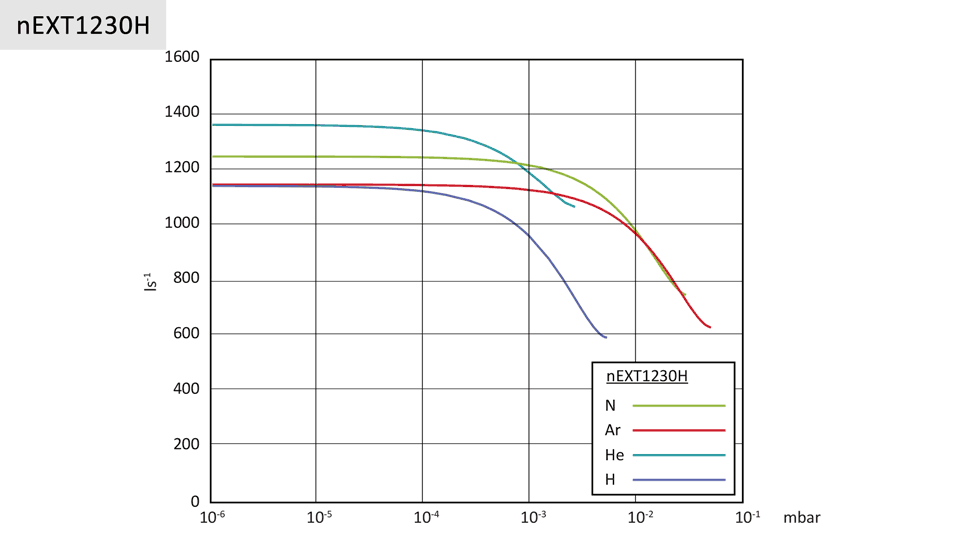

PERFORMANCE
